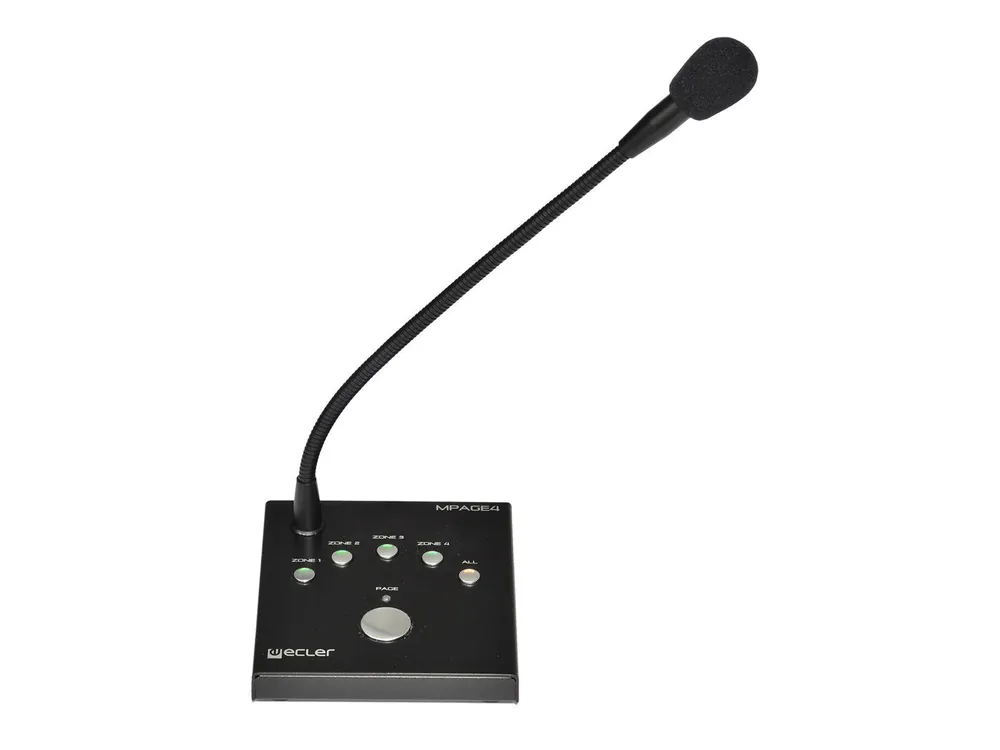

MPAGE4 es una consola de avisos de sobremesa de 4 zonas, compatible con DAM614, serie CA, etc. Permite enviar avisos de voz a tiempo real con selección de zonas de destino.
- 4 teclas de selección de zona
- Teclas SELECT ALL, y PAGE
- Melodía de carillón seleccionable
- Micrófono de cuello de cisne
MPAGE4 es una consola de avisos de sobremesa de 4 zonas, compatible con DAM614, serie CA, etc. Permite enviar avisos de voz a tiempo real con selección de zonas de destino.
System
Number of paging zones
4
Mic inputs
Microphone type
Non-removable gooseneck condenser microphone
Polar pattern
Cardioid
Frequency response
50Hz – 18KHz (-10dB)
Phantom power
+6 to 15V, 40mA
Line outputs
Output connection type
RJ45 (pager)
Max output level
0dBV @ 104dB SPL ±7dB (internal adj.)
Monitoring and control
LED indicators
PAGE
Buttons
PAGE, zone, ALL zones
Connectivity
Ethernet
1 RJ45
Electrical
Power supply
+6 to 15V
Max power consumption
40mA
Physical
Type
Desktop paging station
Installation options
Desktop
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Included accessories
Windscreen
Dimensions
Microphone excluded: 120 x 43 x 126 mm / 4.72 x 4.96 x 1.69 in. (WxHxD)
Weight
0.625 kg / 1.38 lb
Shipping dimensions
240 x 165 x 190 mm / 9.45 x 6.5 x 7.48 in. (WxHxD)
Shipping weight
1.0 kg / 2.2 lb
